256 x 192 Thermal Sensor and a 2MP CMOS Sensor

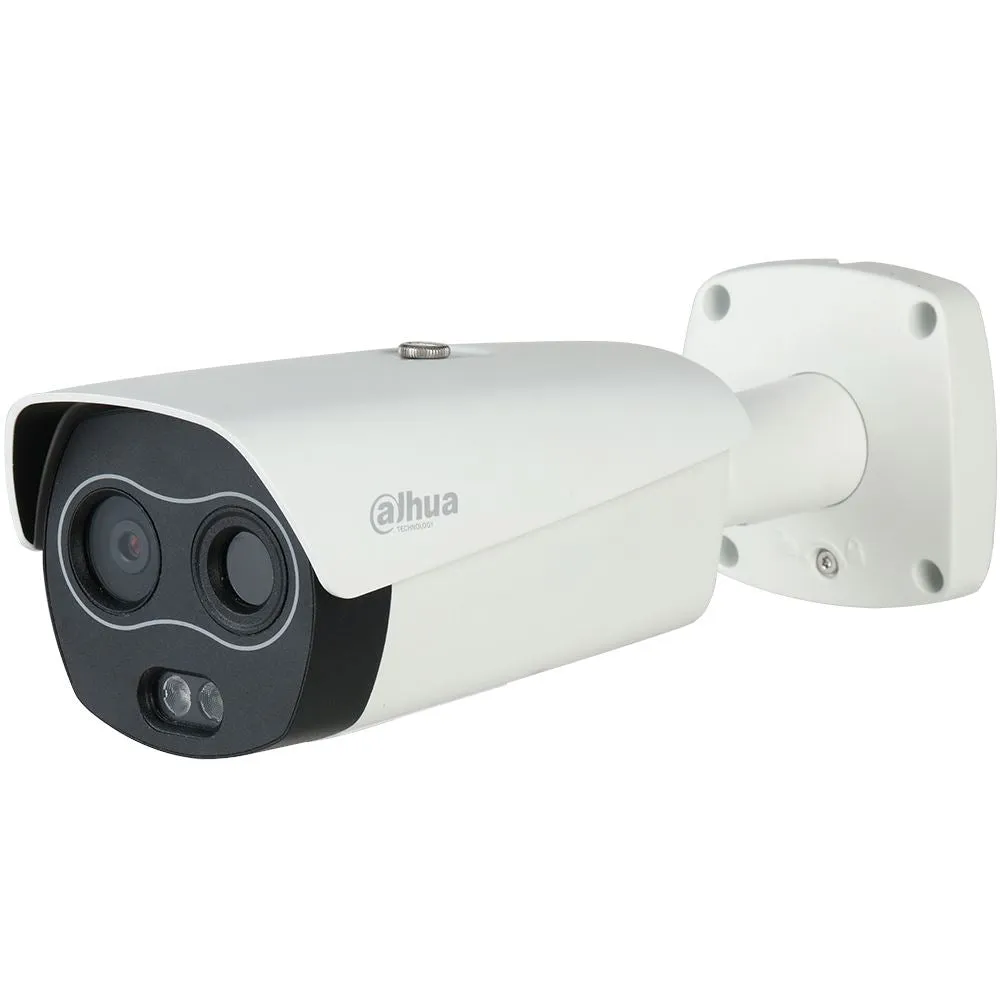

The Hybrid Thermal Network camera combines an uncooled VOx 256 x 192 thermal imager with a 2 MP visible-light sensor for cost-effective, long-range surveillance in a rugged all-in-one package. The thermal imager coupled with an athermalized, focus-free lens produces crisp images in total darkness and sees through rain, fog, and snow. The visible imager with an IR illuminator delivers superior video in any lighting condition. The built-in Fire Detection feature identifies a rapid temperature rise and warns of a potential fire. Hybrid thermal cameras let you see the visible and the invisible.

Thermal Camera

• 256 x 192 VOx Uncooled Thermal Sensor Technology
• Athermalized Lens, Focus-free
• 3.5 mm Fixed Thermal Lens
• ≤ 50 mK Thermal Sensitivity

Visible-light Camera

• 1/2.8-in. 2MP Progressive-scan CMOS Sensor
• 4 mm Fixed Lens
• Maximum IR Distance 35 m (114 ft)

System Features

• Intelligent Video System with Fire Detection and Alarm Functionality
• Enhanced Power and Data Transmission Distances (ePoE)
• IP67 Ingress Protection
• Five-year Warranty (for products sold through an authorized Dahua dealer)
