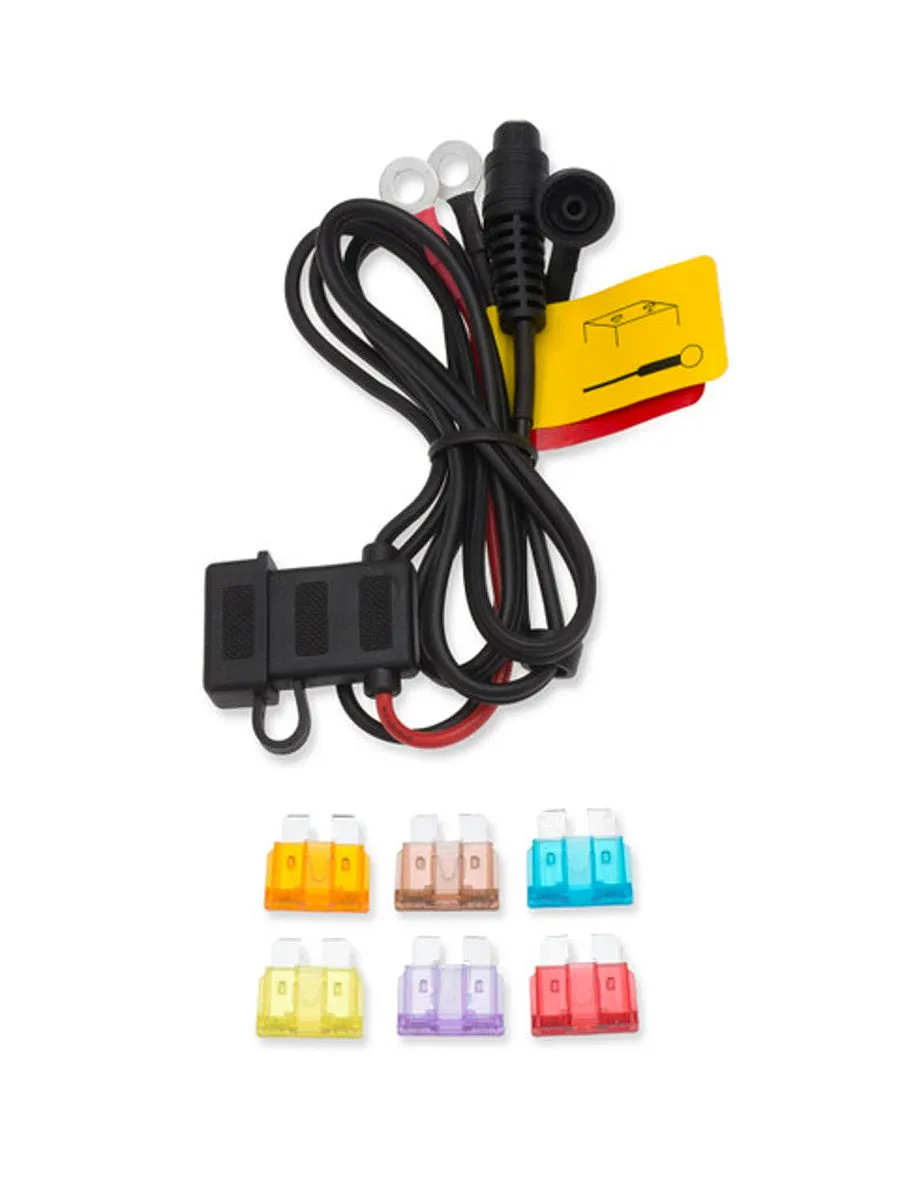

The Battery Harness connects directly to the battery of your vehicle's battery, enabling your vehicle to also power your heated gear. It also enables your vehicle to supply power to 12V heated garments via ring terminals. The Gerbing .
Details:
- Max Capacity: 20 Amps
- Power: 12V DC to 16V DC
- Length: 48"
- Includes fuse kit with 3, 5, 7.5, 10, 15, and 20 Amp fuses
This pairs well with our , which allows you have a mainline connection for your Battery Tender.
Battery Harness Fuse Selection - Key Considerations:
- Only use a fuse rated for the riding gear combination being used. Using a higher rated fuse than needed may result in the fuse not preventing electrical system overload, and thus failing to protect the circuit. This can cause damage to riding gear, vehicle, or persons.
- Using a lower rated fuse than specified can result in the fuse continuously blowing, and the product not working as designed.
- Installers and customers should always refer to the below fuse chart.
- Battery Harness comes with the below fuse set. However, it does not come with a pre-installed fuse.
- Review the chart and install the correct size fuse for the clothing combination the rider will be using.
- When adding or changing the combination of items being used, check the fuse requirements and change the fuse as recommended in the chart below:
- The amp draws listed are based on 12V calculations, when powered through a Motorcycle @ 13.8 - 14.1V the draw can be higher.
- Example: Jacket at 12V is 6.9 amps and at 14.1V is 7.6 amps
- Example: Gloves @ 2.2 amps Jacket @ 6.9 amps = 9.1 amps
- Fuse required = 10 amp
Use the lowest rated fuse that is rated above your calculated total electrical current draw.
